Digitaler Messtaster mit einfachem Austausch durch "In-Line" Stecker

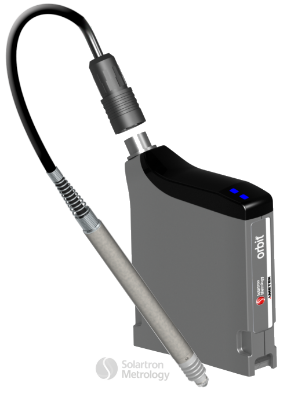

Optional lassen sich alle Orbit® Messtaster mit einem “In-line” Stecker versehen. Dieser Stecker kann nah am Taster befestigt werden, so
dass der Taster ausgetauscht werden kann, ohne das Kabel lösen zu müssen.

Taster können einfach, ohne Neuprogrammierung der Steuerungssoftware, ersetzt werden. Der geringe Durchmesser des Steckers erlaubt problemlose Montage.

Other Probe Options

IP 68 Sealing: Probe sealed by hand at all points of ingress. Our IP 68 sealing is validated by 3rd party to ensure quality throughout. Available on standard spring and pneumatic probes (not with Jet Probes or Feather Touch). This customisation is ideal for wet or oily environments.

Cable Customisation: Customiseable cable lengths up to 10 meters. Various cable protections also available (such as armoured, nylon, and steel).

Right Angle Outlets: This customisation is ideal for tighter spaces and awkward angles. Despite the different shape, there is no change in probe performance.

Offset Pneumatic Probes: Offset Pneumatic probes are pneumatic probes that have a 10 or 20 mm stroke, but only 2 or 5 mm measurement range at the end of stroke. An example of this is a DP/10/2/P.

View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue

Analogue Gauge Catalogue

Orbit Power Supply - the PSIM

Solartron supply quality regulated power supplies for the Orbit® Measurement System in a number of configurations. We highly recommend the use of these to ensure optimum performance.

PSIM Lite available

AC Power In, 5 VDC Out

DC Power (24 VDC) In, 5 VDC Out

Power up to 32 Modules depending on type



View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue

Orbit Accessories - Customisation Made Easy

Replacement Gaiters: Gaiters can be replaced when damaged. Only pneumatic push probes require gaiter rings Retrofit.

Right Angle Adaptor: For use with spring push gauging probes

Imperial Adaptor Sleeves: Adapter Sleeves can be used to increase the body diameter of 8mm sensors to 9.512 (3/8”). Available in lengths from 12 to 127 mm. Available with or without a split.

Clamping Collet: For use with all 8 mm diameter probes. The clamping collet distributes the clamping forces evenly around the probe body. Using the supplied grub screw, the probe can be loosened while holding the collet in place

Finger Lift: Linear Encoder specific customisation.

View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue

Analogue Gauge Catalogue

Technical Drawings

Ball Tips - Various Shapes, Sizes, and Materials

Contact size, shape and material are critical to ensure accurate measurements, foe example a flat knife tip makes measuring external diameters much simpler than using a point tip as probe alignment is not as critical. Tungsten carbide is a good general purpose material while ruby offers longer life. Silicon Nitride is good for aluminum as Tungsten Carbide can mark aluminum parts.

Key Features

Various sizes available

Various shapes available

Various material available



View Brochures and Drawings

Please click the links to view and download the following information:

Orbit Digital Gauge Catalogue

Analogue Gauge Catalogue
