AUS - SINGLE LEAF FLEXURE ANALOGUE

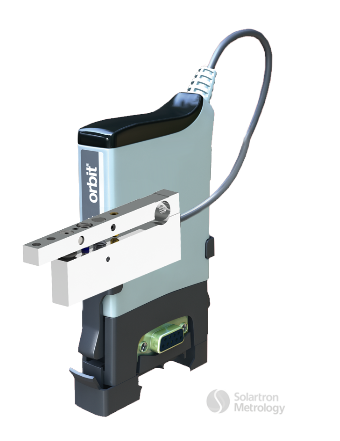

Orbit Single Leaf Flexure
AUS –Single Leaf Flexure

  • ± 0.25 mm measuring range
  • Extension arms
  • Up to 0.25 µm repeatability
  • IP65 sealing
  • Normal or Reverse Spring Actuation
  • Solartron’s Single Leaf Flexures are gauging transducers designed to enable measurement of features that conventional pencil probes are unable to reach. Due to the flexible design, users can fit extension arms to increase the reach and hence versatility of the transducer, typical applications are shim selection or measuring a feature inside a recess. Designed with no wearing parts and with excellent repeatability (<0.15 µm), coupled to transducers with no contacting parts, leads to good gauge R&R combined with a very long life. The flexure may be mounted so that little stress is applied through the gauge centre line, thus enabling precision profiling of moving materials such as sheet material, brake disks or rotating shafts. The gauge is supplied inclusive of sensor but does not include the tool holder, tip carrier or tips. There are versions for spring extension or retraction with axial or radial cable exit





    • 2D PDF Drawings +
