A pneumatic displacement sensor (gauge probe) allows the number of parts in the fixture to be reduced resulting in improved reliability and reduced fixture cost. It also allows for fast automatic loading of the part into the gauge as the displacement probe tip can be in the fully ‘retract position’ when this is occurring.



The benefit of using a pneumatic push displacement sensor (gauge probe) compared to a spring push probe is that there is less need to design mechanisms to bring the contact senor tip onto the part being measured thus simplifying the overall gauge design. A pneumatic displacement sensor (gauge probe) allows the number of parts in the fixture to be reduced resulting in improved reliability and reduced fixture cost. It also allows for fast automatic loading of the part into the gauge as the displacement probe tip can be in the fully ‘retract position’ when this is occurring.



The pneumatic digital gauge probe combines the strong features of a conventional linear variable differential transformer (LVDT) with enhanced accuracy. The accuracy specified for the digital senor is total accuracy unlike conventional LVDT’s which specify linearity. Another benefit of the digital displacement sensor (Gauge probe) is the probe requires no set up or adjustment with conditioning electronics like a traditional LVDT because the digital displacement senor provides a precision measurement straight out of the box. Combining multiple sensors using the  Orbit Digital Measurement network is easy and data can be read using a Solartron readout or the Gauge Computer Software making system integration simple.

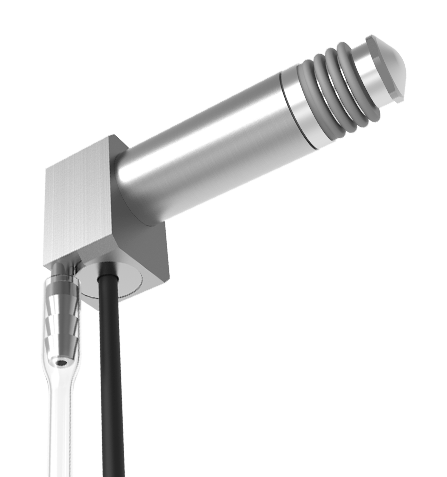

  • Pneumatic Push Actuation D6JP
    D6J PNEUMATIC JET 6MM DIAMETER

    With the D6J PNEUMATIC probes, a 25% diameter reduction over conventional probes has been achieved, yet performance and life expectancy has been maintained. Long life precision bearings ensure that probes maintain their performance for millions of cycles

    Keep Reading
  • DJ/P - Pneumatischer Vorschub

    Messtaster vom Typ “J” unterscheiden sich von der Standard Pneumatikausführungen durch den eingebauten Kolben. Hohe Messkräfte sind so möglich. Da Luft durch eine Öffnung an der Vorderseite entweicht, ist diesem Typ eine niedrigere IP-Schutzklasse zugeordnet. Diese pneumatisch betriebenen Messtaster arbeiten selbst bei defektem Faltenbalg einwandfrei weiter.

    Keep Reading

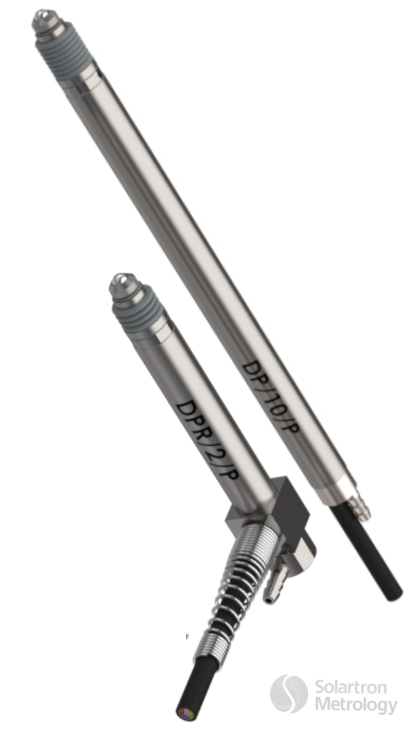

  • Digital Measuring network Pneumatic Push Actuation Probes DP/P
    DP PNEUMATIC

    Pneumatic transducers are ideal for use in automatic gauging applications or for accessing details that would be difficult or impossible to reach with spring push probes. The standard range of Pneumatic probes comes with IP65 sealing to ensure a long life in wet or oily environments
